GENERATORS

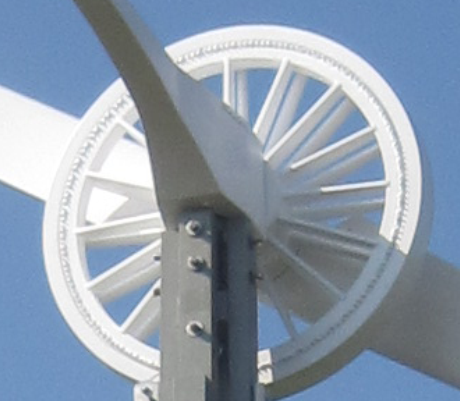

RING GENERATORS
are multi-pole generators.
provide high power efficiency at low rotational speed.
Ring generators with inner rotor:
typ |
dimension D x L [mm] |
shaft diameter [mm] |
weight [kg] |
speed [rpm] |
electrical power [W] |
voltage [Vac] |
starting torque [Nm] |
efficiency [%] |
PMRSG-IR-400-8k6/220 | 400 x 215 | - | 58 | 0-220 | 0-8000 | 0-430 | <4 | 85 |
PMRSG-IR-500-9k5/150 | 500 x 217 | - | 73 | 0-150 | 0-9500 | 0-430 | <7,8 | 84 |
PMRSG-IR-800-15k/80 | 800 x 235 | - | 138 | 0-80 | 0-15000 | 0-430 | <22 | 82 |
Ring generators with outer rotor:
typ |
dimension D x L [mm] |
shaft diameter [mm] |
weight [kg] |
speed [rpm] |
electrical power [W] |
voltage [Vac] |
starting torque [Nm] |
efficiency [%] |
PMSRG-OR-600-3k/188 | 600 x 100 | - | 34 | 188 | 3000 | 450 | <0,2 | 93 |
PMSRG-OR-800-3k/140 | 800 x 100 | - | 46 | 140 | 3000 | 450 | <0,2 | 92 |
PMSRG-OR-1100-3k/102 | 1100 x 100 | - | 62 | 102 | 3000 | 450 | <0,2 | 91 |
PMSRG-OR-1400-3k/80 | 1400 x 100 | - | 79 | 80 | 3000 | 450 | <0,2 | 91 |
Contact us for your application!
